⌀230 mm
Cassette Loading
Tornado ICP®
Vacuum Cassette Chamber
Versatile load lock system

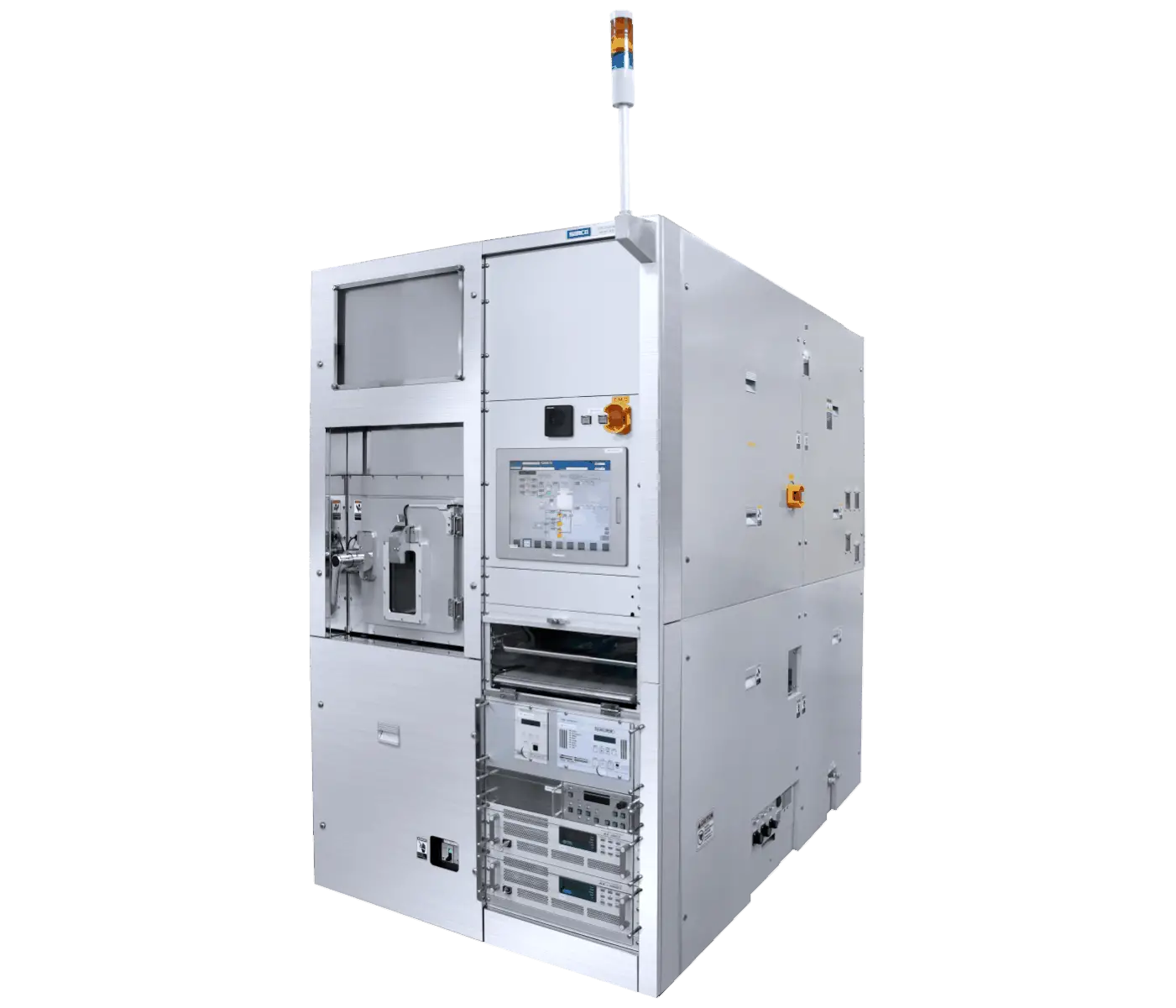

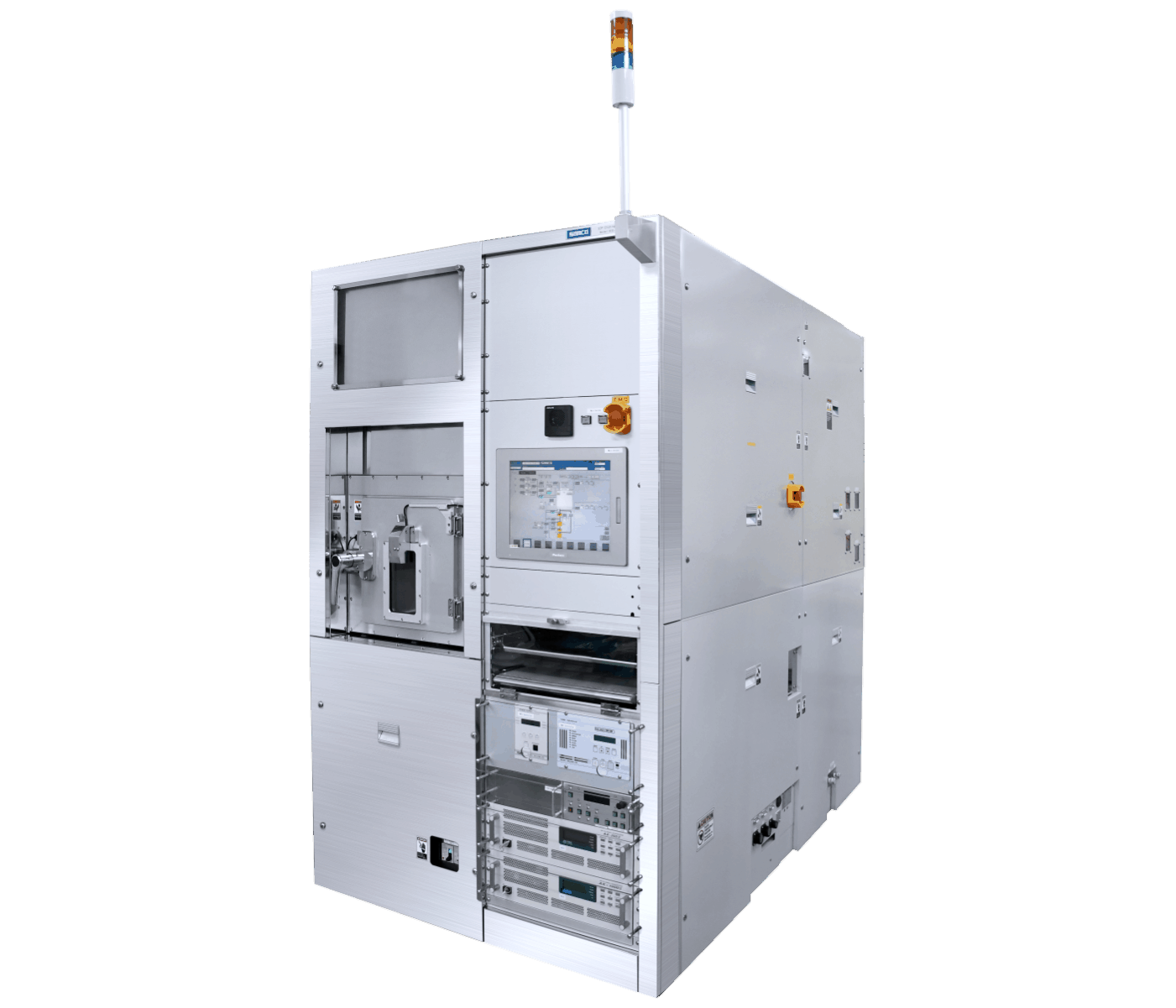

The RIE-230iPC cassette loading ICP-RIE plasma etching system utilises high-density inductively coupled plasma (ICP) to achieve precise etching. Designed with special ø230 mm carrier tray cassettes, the system features an advanced ICP source, temperature-controlled electrode, and a high-flow exhaust system, all within a compact, space-saving design. This system efficiently generates stable, high-density plasma by employing a unique tornado-type coil electrode to enable high-precision anisotropic etching of silicon and various metal thin films and compound semiconductors.
Key Features & Benefits
- Processing up to ø230 mm (ø3″ x 5, ø4″ x 3, ø8″ x 1)
- Samco’s Tornado ICP™ coil can efficiently generate stable, high-density plasma, enabling high selectivity, high accuracy and good uniformity in etching
- A symmetrical evacuation design coupled to a TMP creates an efficient flow
- An optimized gas manifolds to deliver process gas uniformity
- Optional optical/interferometric endpoint detection system enables precise etch depth control over multiple process runs
- ESC and He cooling of the stage and temperature control of the inner side wall of the reaction chamber allow etching under stable conditions
Applications
- High-precision processing of compound semiconductors such as GaN, GaAs, InP, etc.
- Processing of difficult-to-etch materials such as ferroelectrics and electrode materials.
